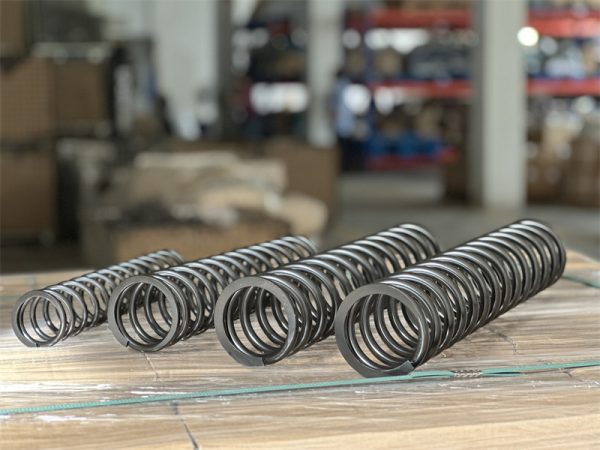

Heavy Duty Linear Actuators Spring /Scotch yoke actuator Spring

Ideal for robust industrial applications. These springs provide reliable linear motion control in demanding environments. Crafted from high-strength materials, they ensure durability and long-lasting performance.
Our Heavy Duty Linear Actuators Springs are designed to handle heavy loads, making them ideal for applications where strength and precision are paramount. Whether it’s in manufacturing, automation, or machinery, these springs excel in delivering consistent and efficient linear actuation.
Count on our Heavy Duty Linear Actuators Springs for exceptional performance and reliability in heavy-duty applications.


The scotch yoke actuator amplifies the linear force of a pressurized piston or compressed spring. The scotch yoke converts that linear force into a rotary motion and torque. Inert gase enters PortA and pressurizes the power module causing the piston to move along the length of the cylinder away from the drive module. Simultaneously,the spring is compressed toward the drive module. The piston’s linear movement and the force genearated is transferred via the Piston Rod and through the guide block to the Scotch Yoke.When the gas is exhausted , the spring now generates the linear force causing the yoke to travel clockwise (CW).

              Coil Spring                                                                   Cooling                                                                                        After Shot Blasting

                Tempering                                                                  Shot Blasting                                                                                     Dynamic   Pressure
